Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

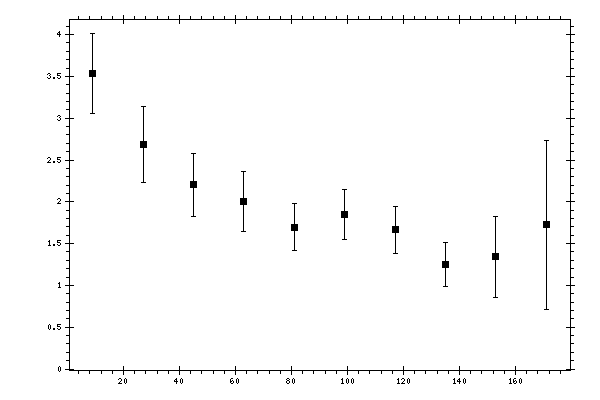

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.5303 | 0.1802 | 0.4444 | 0.4796 |
| 27 | 2.6854 | 0.2581 | 0.3746 | 0.4549 |
| 45 | 2.205 | 0.1246 | 0.3541 | 0.3754 |
| 63 | 2.0015 | 0.1235 | 0.3372 | 0.3591 |
| 81 | 1.6957 | 0.0639 | 0.2754 | 0.2828 |
| 99 | 1.8457 | 0.0798 | 0.2871 | 0.298 |
| 117 | 1.6653 | 0.0754 | 0.2737 | 0.2839 |
| 135 | 1.252 | 0.0603 | 0.2579 | 0.2648 |
| 153 | 1.3399 | 0.1355 | 0.4627 | 0.4821 |
| 171 | 1.7231 | 0.0246 | 1.0112 | 1.0115 |
