Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

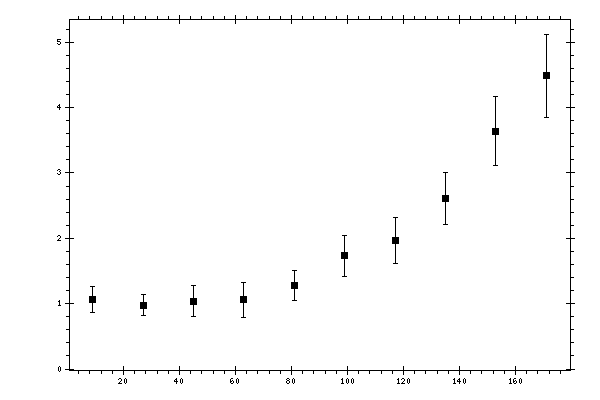

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.0626 | 0.0762 | 0.1892 | 0.204 |
| 27 | 0.9758 | 0.0585 | 0.1466 | 0.1579 |
| 45 | 1.0391 | 0.0754 | 0.2274 | 0.2396 |
| 63 | 1.0582 | 0.0566 | 0.2621 | 0.2682 |
| 81 | 1.2745 | 0.0769 | 0.2177 | 0.2309 |
| 99 | 1.7316 | 0.0863 | 0.303 | 0.3151 |
| 117 | 1.962 | 0.1404 | 0.3239 | 0.3531 |
| 135 | 2.6096 | 0.1184 | 0.3774 | 0.3955 |
| 153 | 3.6407 | 0.151 | 0.5002 | 0.5225 |
| 171 | 4.4855 | 0.2454 | 0.5902 | 0.6392 |
