Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

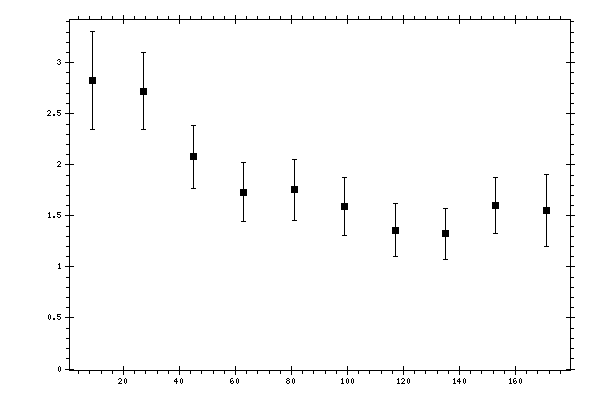

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.8277 | 0.1866 | 0.442 | 0.4798 |
| 27 | 2.7217 | 0.1331 | 0.3549 | 0.379 |
| 45 | 2.0779 | 0.1006 | 0.2881 | 0.3051 |
| 63 | 1.7336 | 0.0953 | 0.2697 | 0.286 |
| 81 | 1.7538 | 0.095 | 0.2833 | 0.2988 |
| 99 | 1.59 | 0.0754 | 0.2741 | 0.2843 |
| 117 | 1.3612 | 0.076 | 0.2474 | 0.2588 |
| 135 | 1.3227 | 0.0622 | 0.2406 | 0.2485 |
| 153 | 1.6031 | 0.0993 | 0.259 | 0.2774 |
| 171 | 1.5527 | 0.1323 | 0.3229 | 0.3489 |
