Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

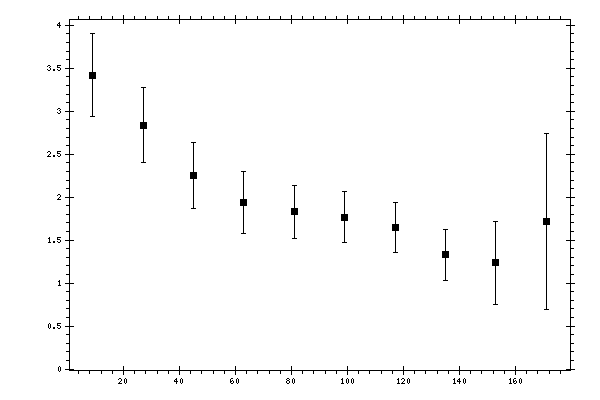

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 3.4213 | 0.1696 | 0.4498 | 0.4807 |
| 27 | 2.8393 | 0.1526 | 0.4093 | 0.4369 |
| 45 | 2.2512 | 0.119 | 0.3689 | 0.3877 |
| 63 | 1.9371 | 0.0972 | 0.3478 | 0.3612 |
| 81 | 1.8295 | 0.0883 | 0.2946 | 0.3075 |
| 99 | 1.7639 | 0.0755 | 0.2867 | 0.2965 |
| 117 | 1.6435 | 0.0763 | 0.2808 | 0.291 |
| 135 | 1.3272 | 0.0926 | 0.2778 | 0.2928 |
| 153 | 1.2352 | 0.1063 | 0.4712 | 0.4831 |
| 171 | 1.7157 | 0.0051 | 1.0254 | 1.0254 |
