Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.1 — 2.125 GeV | |
| Ebeam : | 5.754 GeV |
|

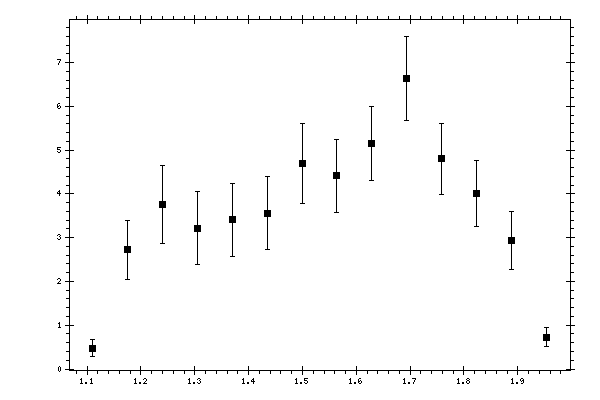

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 0.4718 | 0.0314 | 0.1908 | 0.1933 |
| 1.175084 | 2.7239 | 0.1417 | 0.6531 | 0.6683 |
| 1.239911 | 3.7554 | 0.2105 | 0.8676 | 0.8928 |
| 1.304739 | 3.2218 | 0.1766 | 0.8141 | 0.833 |
| 1.369567 | 3.4061 | 0.2441 | 0.8063 | 0.8424 |
| 1.434394 | 3.563 | 0.1916 | 0.8191 | 0.8412 |
| 1.499222 | 4.6964 | 0.2221 | 0.894 | 0.9211 |
| 1.56405 | 4.4153 | 0.2354 | 0.8016 | 0.8355 |
| 1.628878 | 5.1515 | 0.2163 | 0.812 | 0.8403 |
| 1.693705 | 6.6445 | 0.3296 | 0.907 | 0.9651 |
| 1.758533 | 4.8009 | 0.3021 | 0.7551 | 0.8133 |
| 1.823361 | 4.0028 | 0.1766 | 0.735 | 0.7559 |
| 1.888188 | 2.9256 | 0.3828 | 0.5408 | 0.6626 |
| 1.953016 | 0.7268 | 0.1139 | 0.1818 | 0.2146 |
