Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.1 — 2.125 GeV | |
| Ebeam : | 5.754 GeV |
|

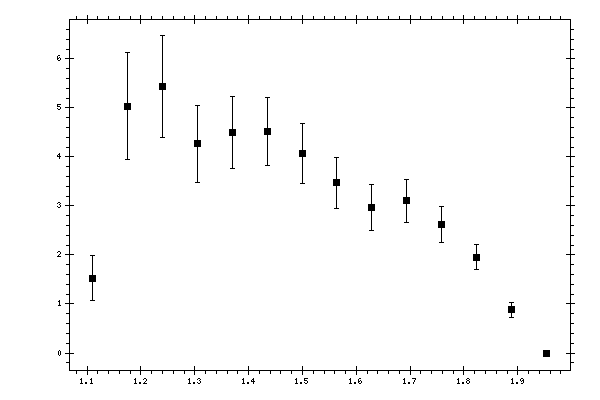

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 1.5279 | 0.1001 | 0.4399 | 0.4512 |
| 1.175084 | 5.0314 | 0.215 | 1.072 | 1.0934 |
| 1.239911 | 5.4355 | 0.2327 | 1.0062 | 1.0328 |
| 1.304739 | 4.2672 | 0.237 | 0.7468 | 0.7835 |
| 1.369567 | 4.497 | 0.2286 | 0.7019 | 0.7382 |
| 1.434394 | 4.5097 | 0.2404 | 0.6497 | 0.6928 |
| 1.499222 | 4.0636 | 0.2011 | 0.5795 | 0.6134 |
| 1.56405 | 3.469 | 0.1785 | 0.4915 | 0.5229 |
| 1.628878 | 2.9704 | 0.2265 | 0.4061 | 0.465 |
| 1.693705 | 3.1043 | 0.2033 | 0.3896 | 0.4395 |
| 1.758533 | 2.6194 | 0.1633 | 0.321 | 0.3602 |
| 1.823361 | 1.9582 | 0.1193 | 0.2339 | 0.2626 |
| 1.888188 | 0.8783 | 0.0745 | 0.1241 | 0.1447 |
| 1.953016 | 0.0002 | 0.0024 | 0.0001 | 0.0024 |
