Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2.4 — 3 GeV2 | |
|---|---|---|
| W : | 2.1 — 2.125 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

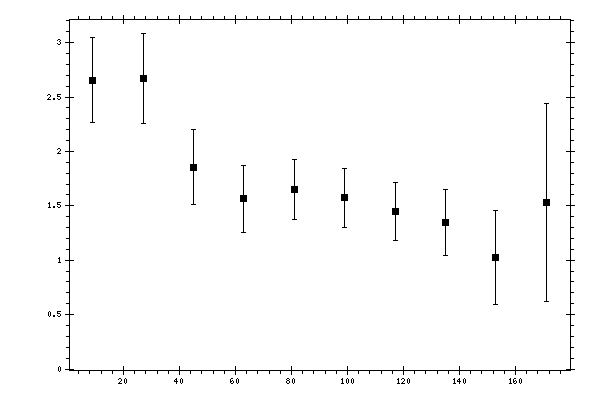

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.6547 | 0.1315 | 0.3664 | 0.3893 |
| 27 | 2.6695 | 0.1492 | 0.3873 | 0.415 |
| 45 | 1.8569 | 0.0995 | 0.3276 | 0.3423 |
| 63 | 1.5644 | 0.0581 | 0.305 | 0.3105 |
| 81 | 1.651 | 0.0638 | 0.2704 | 0.2778 |
| 99 | 1.5749 | 0.0644 | 0.2636 | 0.2714 |
| 117 | 1.4481 | 0.0621 | 0.2573 | 0.2647 |
| 135 | 1.3445 | 0.1201 | 0.2771 | 0.302 |
| 153 | 1.0236 | 0.0559 | 0.4283 | 0.4319 |
| 171 | 1.527 | 0.004 | 0.9106 | 0.9106 |
