Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|

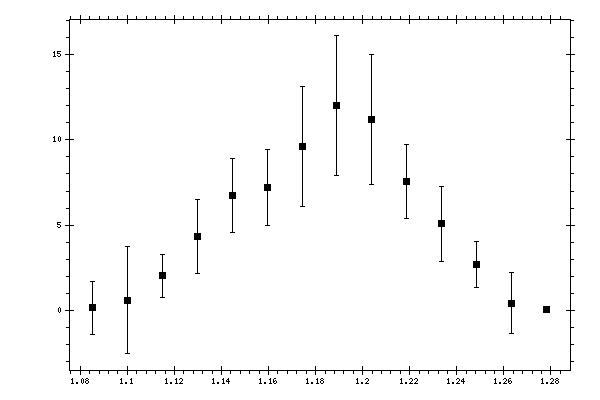

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.085256 | 0.1567 | 0.0235 | 0.1038 | 1.527 |
| 1.100084 | 0.6209 | 0.0876 | 0.3527 | 3.1077 |
| 1.114911 | 2.0345 | 0.2378 | 0.8756 | 1.2398 |
| 1.129739 | 4.3482 | 0.4438 | 1.5344 | 2.1696 |
| 1.144567 | 6.7385 | 0.588 | 2.0801 | 2.1616 |
| 1.159394 | 7.2186 | 0.6811 | 2.1158 | 2.2227 |
| 1.174222 | 9.6242 | 0.8063 | 2.4837 | 3.5143 |
| 1.18905 | 11.9889 | 0.9181 | 2.8954 | 4.0966 |
| 1.203877 | 11.2151 | 0.903 | 2.6918 | 3.8076 |
| 1.218705 | 7.5582 | 0.7001 | 2.0559 | 2.1719 |
| 1.233533 | 5.0811 | 0.5392 | 1.5436 | 2.1869 |
| 1.248361 | 2.7047 | 0.3223 | 0.9562 | 1.3495 |
| 1.263188 | 0.4465 | 0.0473 | 0.2811 | 1.7697 |
| 1.278016 | 0.0385 | 0.0256 | 0.0255 | 0.0361 |
