Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

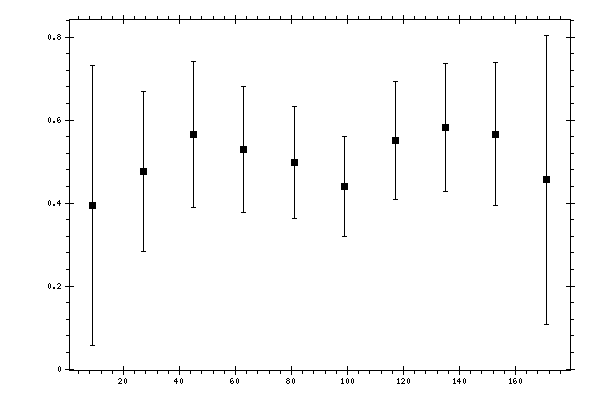

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.3934 | 0.0316 | 0.246 | 0.3379 |
| 27 | 0.4758 | 0.0504 | 0.1865 | 0.1932 |
| 45 | 0.5648 | 0.0514 | 0.1681 | 0.1758 |
| 63 | 0.5298 | 0.0453 | 0.1445 | 0.1514 |
| 81 | 0.4986 | 0.0364 | 0.1298 | 0.1348 |
| 99 | 0.4396 | 0.0356 | 0.1155 | 0.1209 |
| 117 | 0.5509 | 0.0434 | 0.1346 | 0.1414 |
| 135 | 0.5824 | 0.0509 | 0.1455 | 0.1541 |
| 153 | 0.5664 | 0.0585 | 0.1624 | 0.1726 |
| 171 | 0.4561 | 0.0489 | 0.2432 | 0.348 |
