Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.4 — 1.425 GeV | |
| Ebeam : | 5.754 GeV |
|

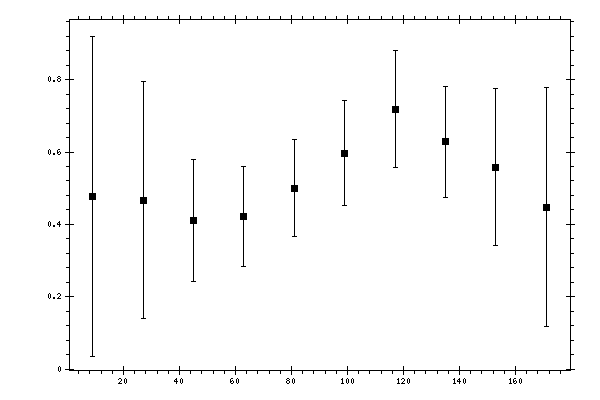

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4775 | 0.0241 | 0.3023 | 0.4432 |
| 27 | 0.4667 | 0.0501 | 0.2129 | 0.3284 |
| 45 | 0.4106 | 0.0388 | 0.1632 | 0.1678 |
| 63 | 0.4219 | 0.0354 | 0.1332 | 0.1378 |
| 81 | 0.5004 | 0.0457 | 0.126 | 0.134 |
| 99 | 0.597 | 0.0527 | 0.1343 | 0.1443 |
| 117 | 0.7181 | 0.0543 | 0.1523 | 0.1617 |
| 135 | 0.6289 | 0.0534 | 0.1439 | 0.1535 |
| 153 | 0.5584 | 0.0544 | 0.1514 | 0.2163 |
| 171 | 0.4479 | 0.0554 | 0.2084 | 0.3296 |
