Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

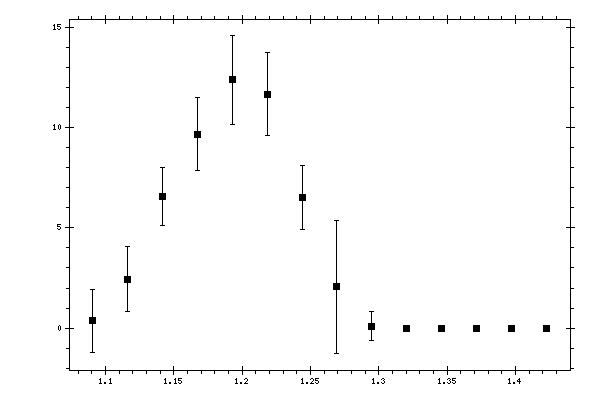

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.3616 | 0.0569 | 0.1656 | 1.5773 |
| 1.116155 | 2.448 | 0.4866 | 0.6253 | 1.6127 |
| 1.141697 | 6.5633 | 0.5353 | 1.3346 | 1.438 |
| 1.167239 | 9.6889 | 0.5972 | 1.7294 | 1.8296 |
| 1.192781 | 12.3875 | 0.7571 | 2.0693 | 2.2034 |
| 1.218323 | 11.6769 | 0.803 | 1.9193 | 2.0805 |
| 1.243865 | 6.5154 | 0.5138 | 1.1377 | 1.6062 |
| 1.269407 | 2.0533 | 0.2753 | 0.4379 | 3.3044 |
| 1.294949 | 0.0905 | 0.0228 | 0.0443 | 0.7242 |
| 1.320491 | 0 | 0.0074 | 0 | 0.0074 |
| 1.346033 | 0 | 0.0043 | 0 | 0 |
| 1.371575 | 0 | 0.003 | 0 | 0 |
| 1.397117 | 0 | 0.0033 | 0 | 0 |
| 1.422659 | 0 | 0.0034 | 0 | 0 |
