Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

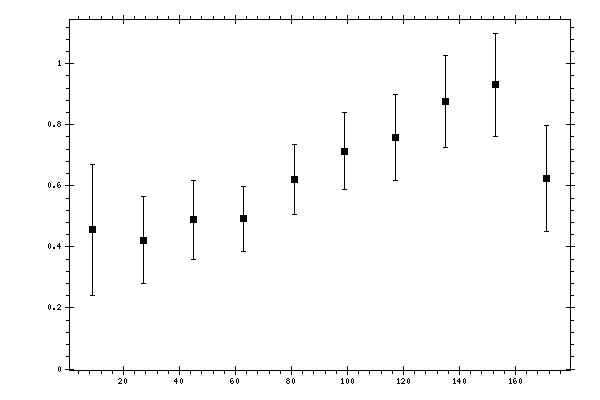

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4559 | 0.0515 | 0.2091 | 0.2154 |
| 27 | 0.4224 | 0.0586 | 0.1288 | 0.1415 |
| 45 | 0.4887 | 0.0527 | 0.1172 | 0.1285 |
| 63 | 0.4914 | 0.0457 | 0.0977 | 0.1078 |
| 81 | 0.621 | 0.0488 | 0.104 | 0.1149 |
| 99 | 0.7139 | 0.0506 | 0.1145 | 0.1252 |
| 117 | 0.7581 | 0.0762 | 0.1192 | 0.1415 |
| 135 | 0.8769 | 0.0623 | 0.1371 | 0.1506 |
| 153 | 0.9315 | 0.0774 | 0.1497 | 0.1686 |
| 171 | 0.6229 | 0.1017 | 0.1411 | 0.174 |
