Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.45 — 1.475 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

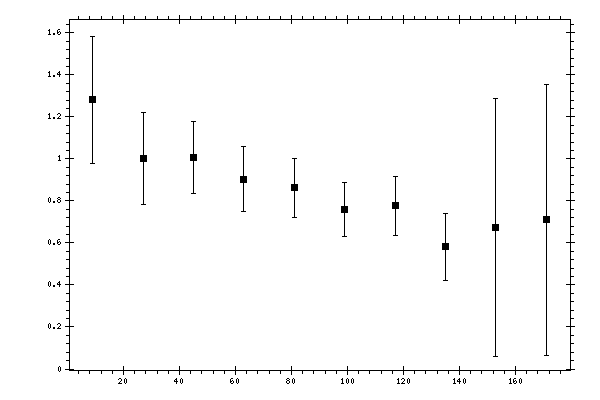

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2815 | 0.1292 | 0.2102 | 0.3037 |
| 27 | 1.0016 | 0.0666 | 0.155 | 0.2204 |
| 45 | 1.0058 | 0.0707 | 0.1551 | 0.1705 |
| 63 | 0.9034 | 0.0617 | 0.1426 | 0.1554 |
| 81 | 0.8618 | 0.047 | 0.1332 | 0.1412 |
| 99 | 0.7595 | 0.0467 | 0.1182 | 0.1271 |
| 117 | 0.7778 | 0.0632 | 0.1251 | 0.1401 |
| 135 | 0.5813 | 0.0927 | 0.1317 | 0.161 |
| 153 | 0.6745 | 0.005 | 0.4339 | 0.6144 |
| 171 | 0.7099 | 0.003 | 0.4567 | 0.6433 |
