Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.45 — 1.475 GeV | |
| Ebeam : | 5.754 GeV |
|

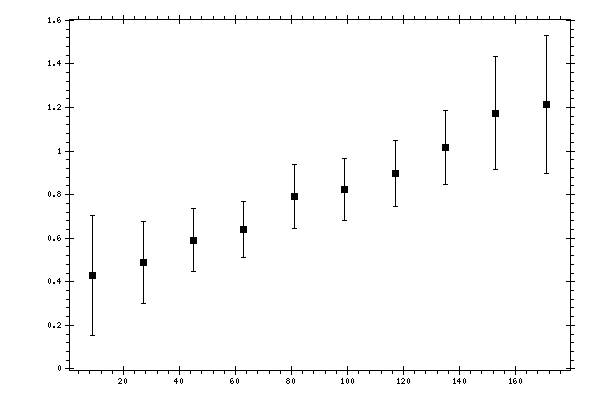

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4288 | 0.0555 | 0.1942 | 0.2756 |
| 27 | 0.4895 | 0.0543 | 0.1308 | 0.1875 |
| 45 | 0.5914 | 0.062 | 0.1293 | 0.1434 |
| 63 | 0.6415 | 0.0482 | 0.1184 | 0.1278 |
| 81 | 0.7916 | 0.07 | 0.1284 | 0.1462 |
| 99 | 0.8233 | 0.0542 | 0.1295 | 0.1404 |
| 117 | 0.8975 | 0.0618 | 0.1386 | 0.1517 |
| 135 | 1.0168 | 0.0638 | 0.1565 | 0.169 |
| 153 | 1.1747 | 0.0864 | 0.183 | 0.2612 |
| 171 | 1.2142 | 0.1444 | 0.2259 | 0.3184 |
