Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|

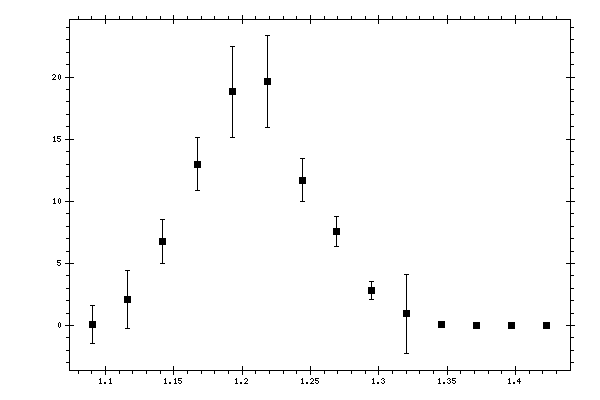

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.0808 | 0.0173 | 0.0482 | 1.5181 |
| 1.116155 | 2.1 | 0.2449 | 0.4887 | 2.2975 |
| 1.141697 | 6.788 | 0.6334 | 1.2584 | 1.7761 |
| 1.167239 | 13.0063 | 0.9173 | 1.9529 | 2.1577 |
| 1.192781 | 18.8215 | 0.9291 | 2.5929 | 3.6713 |
| 1.218323 | 19.6361 | 1.4255 | 2.6086 | 3.6869 |
| 1.243865 | 11.7174 | 0.6904 | 1.5994 | 1.742 |
| 1.269407 | 7.5914 | 0.5927 | 1.071 | 1.224 |
| 1.294949 | 2.8278 | 0.2963 | 0.4975 | 0.7027 |
| 1.320491 | 0.9426 | 0.1533 | 0.226 | 3.1614 |
| 1.346033 | 0.0485 | 0.0228 | 0.0209 | 0.0854 |
| 1.371575 | 0 | 0.0048 | 0 | 0.0048 |
| 1.397117 | 0 | 0.0057 | 0 | 0 |
| 1.422659 | 0 | 0 | 0 | 0 |
