Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.475 — 1.5 GeV | |
| Ebeam : | 5.754 GeV |
|

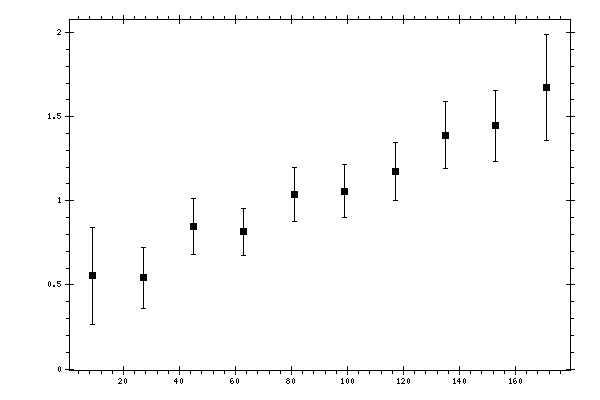

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.5546 | 0.0839 | 0.2054 | 0.2894 |
| 27 | 0.542 | 0.0595 | 0.127 | 0.1814 |
| 45 | 0.8475 | 0.078 | 0.148 | 0.1673 |
| 63 | 0.8153 | 0.062 | 0.1267 | 0.141 |
| 81 | 1.039 | 0.0729 | 0.1418 | 0.1595 |
| 99 | 1.0578 | 0.0681 | 0.141 | 0.1566 |
| 117 | 1.1737 | 0.0795 | 0.1541 | 0.1734 |
| 135 | 1.3894 | 0.0846 | 0.1788 | 0.1978 |
| 153 | 1.4445 | 0.0949 | 0.1893 | 0.2117 |
| 171 | 1.673 | 0.182 | 0.2576 | 0.3154 |
