Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

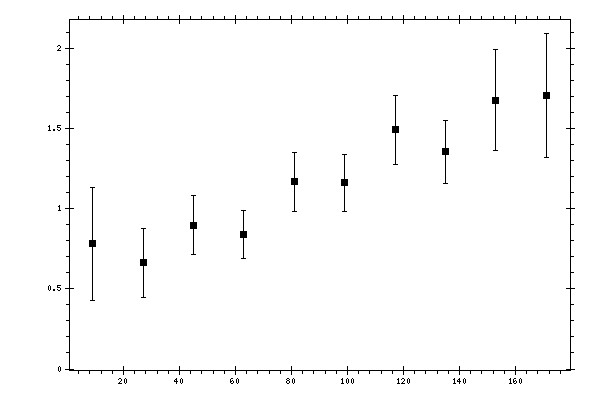

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.7813 | 0.1278 | 0.2485 | 0.3509 |
| 27 | 0.6627 | 0.0729 | 0.1521 | 0.2157 |
| 45 | 0.8977 | 0.0894 | 0.162 | 0.185 |
| 63 | 0.8394 | 0.0545 | 0.1365 | 0.147 |
| 81 | 1.168 | 0.0841 | 0.1624 | 0.1828 |
| 99 | 1.163 | 0.0789 | 0.1593 | 0.1777 |
| 117 | 1.4919 | 0.0839 | 0.1988 | 0.2158 |
| 135 | 1.3559 | 0.0758 | 0.1811 | 0.1963 |
| 153 | 1.6765 | 0.113 | 0.223 | 0.3154 |
| 171 | 1.708 | 0.1851 | 0.2726 | 0.3873 |
