Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|

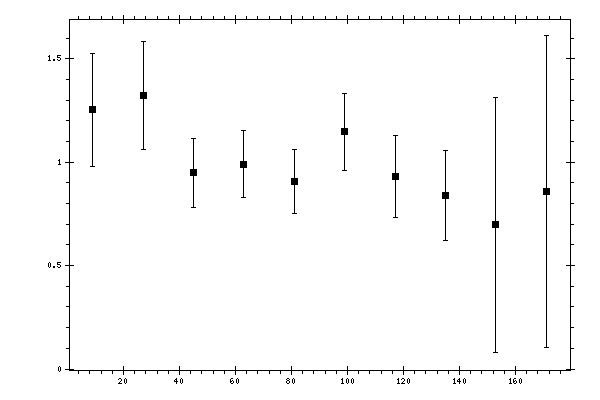

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2529 | 0.1271 | 0.1914 | 0.2747 |
| 27 | 1.3221 | 0.08 | 0.1868 | 0.2595 |
| 45 | 0.9483 | 0.0834 | 0.1454 | 0.1676 |
| 63 | 0.9898 | 0.0621 | 0.1499 | 0.1622 |
| 81 | 0.9063 | 0.079 | 0.1346 | 0.1561 |
| 99 | 1.1463 | 0.0844 | 0.1646 | 0.1849 |
| 117 | 0.9293 | 0.0502 | 0.1388 | 0.1973 |
| 135 | 0.8366 | 0.0654 | 0.1521 | 0.2175 |
| 153 | 0.6965 | 0.0066 | 0.4331 | 0.6149 |
| 171 | 0.8567 | 0.0027 | 0.534 | 0.7543 |
