Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|

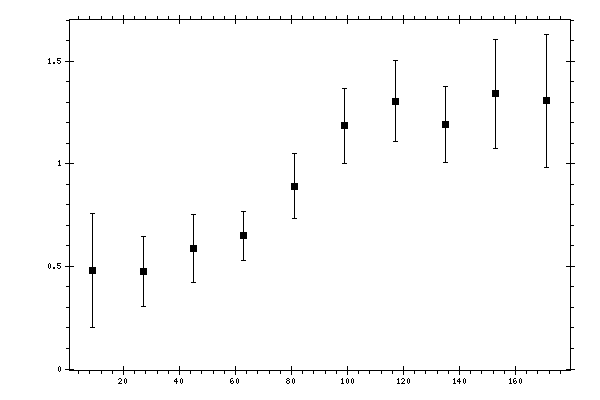

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4801 | 0.0699 | 0.1927 | 0.2776 |
| 27 | 0.4755 | 0.05 | 0.1196 | 0.1694 |
| 45 | 0.5889 | 0.0461 | 0.1195 | 0.1666 |
| 63 | 0.6504 | 0.046 | 0.1108 | 0.12 |
| 81 | 0.891 | 0.0876 | 0.1309 | 0.1576 |
| 99 | 1.1853 | 0.0699 | 0.1671 | 0.1811 |
| 117 | 1.3063 | 0.0721 | 0.1827 | 0.1964 |
| 135 | 1.191 | 0.084 | 0.1658 | 0.1858 |
| 153 | 1.3412 | 0.0881 | 0.1868 | 0.2651 |
| 171 | 1.3072 | 0.1395 | 0.2278 | 0.3234 |
