Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.55 — 1.575 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

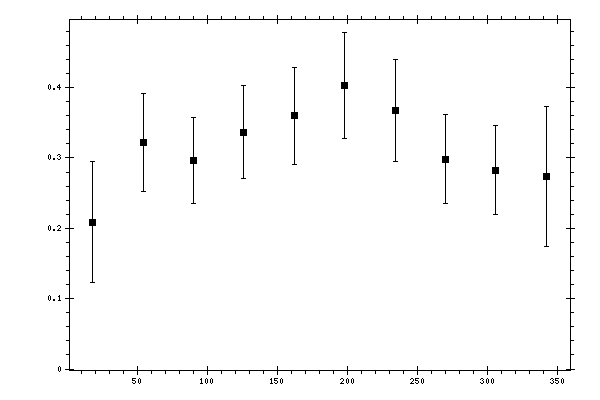

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.2086 | 0.022 | 0.0604 | 0.0858 |
| 54 | 0.3223 | 0.0294 | 0.0635 | 0.0699 |
| 90 | 0.2958 | 0.0235 | 0.0565 | 0.0612 |
| 126 | 0.3366 | 0.0227 | 0.0622 | 0.0663 |
| 162 | 0.3599 | 0.0245 | 0.0648 | 0.0693 |
| 198 | 0.4028 | 0.0238 | 0.0717 | 0.0756 |
| 234 | 0.3674 | 0.0272 | 0.0671 | 0.0724 |
| 270 | 0.2985 | 0.0268 | 0.0568 | 0.0629 |
| 306 | 0.2827 | 0.0261 | 0.0574 | 0.0631 |
| 342 | 0.2734 | 0.0259 | 0.0696 | 0.0993 |
