Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.6 — 1.625 GeV | |
| Ebeam : | 5.754 GeV |
|

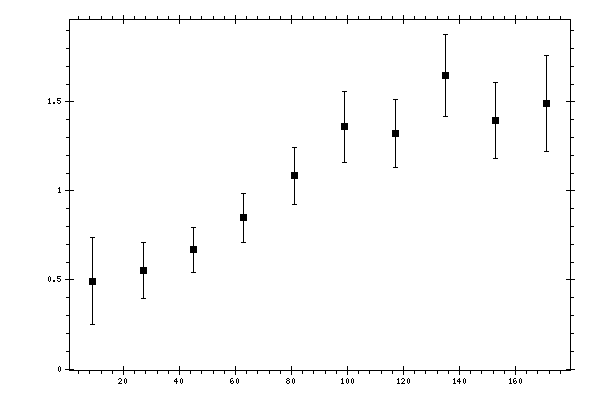

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4933 | 0.0789 | 0.167 | 0.2448 |
| 27 | 0.5531 | 0.0611 | 0.1111 | 0.1571 |
| 45 | 0.6687 | 0.055 | 0.1117 | 0.1245 |
| 63 | 0.8489 | 0.0654 | 0.1202 | 0.1369 |
| 81 | 1.0841 | 0.0669 | 0.1441 | 0.1588 |
| 99 | 1.3595 | 0.0981 | 0.1724 | 0.1984 |
| 117 | 1.324 | 0.0915 | 0.1681 | 0.1914 |
| 135 | 1.647 | 0.1096 | 0.2041 | 0.2316 |
| 153 | 1.3939 | 0.1263 | 0.1715 | 0.213 |
| 171 | 1.492 | 0.169 | 0.2091 | 0.2689 |
