Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.65 — 1.675 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

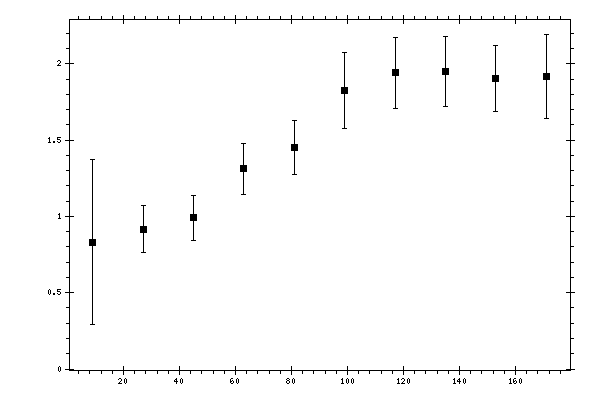

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.8309 | 0.101 | 0.1995 | 0.5393 |
| 27 | 0.9172 | 0.0772 | 0.1314 | 0.1524 |
| 45 | 0.9916 | 0.0822 | 0.1229 | 0.1479 |
| 63 | 1.3127 | 0.0929 | 0.1396 | 0.1677 |
| 81 | 1.451 | 0.0873 | 0.1555 | 0.1784 |
| 99 | 1.8279 | 0.1704 | 0.1813 | 0.2488 |
| 117 | 1.9406 | 0.1228 | 0.1966 | 0.2318 |
| 135 | 1.95 | 0.1258 | 0.1923 | 0.2298 |
| 153 | 1.9042 | 0.1127 | 0.1819 | 0.214 |
| 171 | 1.9167 | 0.177 | 0.212 | 0.2761 |
