Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

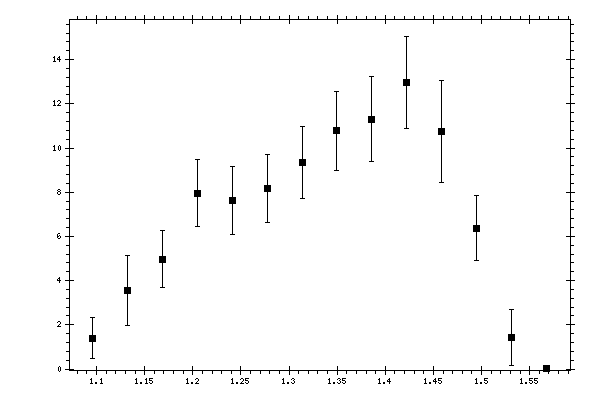

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 1.4 | 0.1862 | 0.2396 | 0.918 |
| 1.132227 | 3.56 | 0.4883 | 0.5834 | 1.5986 |
| 1.168483 | 4.9716 | 0.384 | 0.9225 | 1.3056 |
| 1.204739 | 7.95 | 0.5425 | 1.4243 | 1.5241 |
| 1.240995 | 7.6177 | 0.4907 | 1.4512 | 1.5319 |
| 1.277252 | 8.165 | 0.4351 | 1.4745 | 1.5374 |
| 1.313508 | 9.3646 | 0.5047 | 1.5491 | 1.6293 |
| 1.349764 | 10.7748 | 0.6365 | 1.6876 | 1.8036 |
| 1.38602 | 11.3067 | 0.6309 | 1.8158 | 1.9223 |
| 1.422277 | 12.9685 | 0.7316 | 1.9392 | 2.0726 |
| 1.458533 | 10.7475 | 1.0888 | 1.6373 | 2.3236 |
| 1.494789 | 6.3716 | 0.5317 | 1.0475 | 1.4773 |
| 1.531046 | 1.4153 | 0.2347 | 0.2885 | 1.2679 |
| 1.567302 | 0.0121 | 0.0022 | 0.0074 | 0.0077 |
