Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.675 — 1.7 GeV | |
| Ebeam : | 5.754 GeV |
|

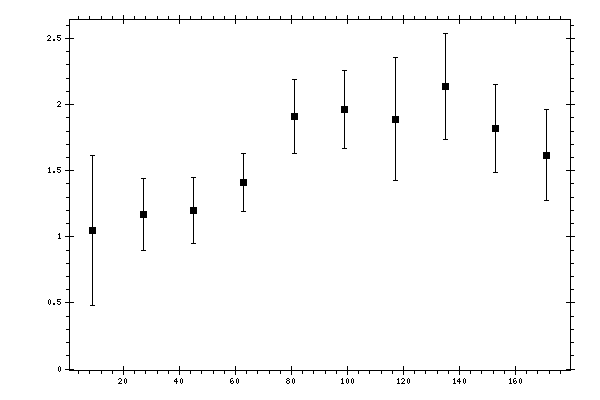

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.0476 | 0.1042 | 0.2563 | 0.5656 |
| 27 | 1.1707 | 0.1038 | 0.1892 | 0.2708 |
| 45 | 1.1959 | 0.0867 | 0.1768 | 0.25 |
| 63 | 1.4111 | 0.0907 | 0.1974 | 0.2173 |
| 81 | 1.9079 | 0.1149 | 0.2537 | 0.2785 |
| 99 | 1.9651 | 0.1213 | 0.2674 | 0.2936 |
| 117 | 1.8901 | 0.3847 | 0.2611 | 0.4649 |
| 135 | 2.1364 | 0.1339 | 0.283 | 0.4009 |
| 153 | 1.8197 | 0.0968 | 0.2372 | 0.3352 |
| 171 | 1.6175 | 0.1643 | 0.2455 | 0.3464 |
