Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.7 — 1.725 GeV | |
| Ebeam : | 5.754 GeV |
|

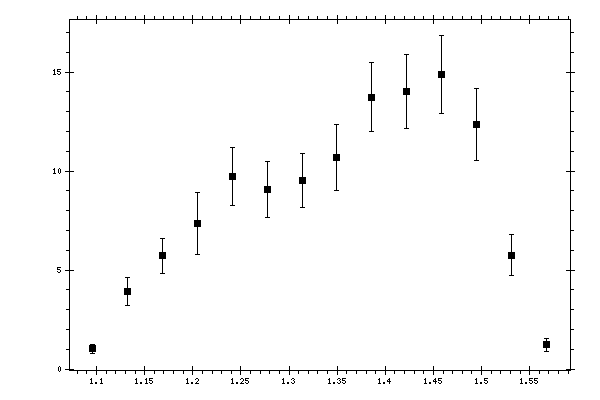

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.09597 | 1.015 | 0.1589 | 0.1603 | 0.2257 |
| 1.132227 | 3.9083 | 0.5129 | 0.4963 | 0.7137 |
| 1.168483 | 5.708 | 0.4303 | 0.7968 | 0.9056 |
| 1.204739 | 7.3469 | 1.1013 | 1.1048 | 1.5599 |
| 1.240995 | 9.7393 | 0.6004 | 1.3351 | 1.4638 |
| 1.277252 | 9.0694 | 0.6603 | 1.2275 | 1.3938 |
| 1.313508 | 9.524 | 0.6081 | 1.2354 | 1.377 |
| 1.349764 | 10.6874 | 0.897 | 1.4215 | 1.6808 |
| 1.38602 | 13.7255 | 0.6653 | 1.6079 | 1.7401 |
| 1.422277 | 13.994 | 0.7467 | 1.716 | 1.8714 |
| 1.458533 | 14.8624 | 0.9159 | 1.7374 | 1.964 |
| 1.494789 | 12.3355 | 0.9213 | 1.5741 | 1.8239 |
| 1.531046 | 5.7524 | 0.4711 | 0.9088 | 1.0237 |
| 1.567302 | 1.2129 | 0.2187 | 0.2279 | 0.3159 |
