Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.7 — 1.725 GeV | |
| Ebeam : | 5.754 GeV |
|

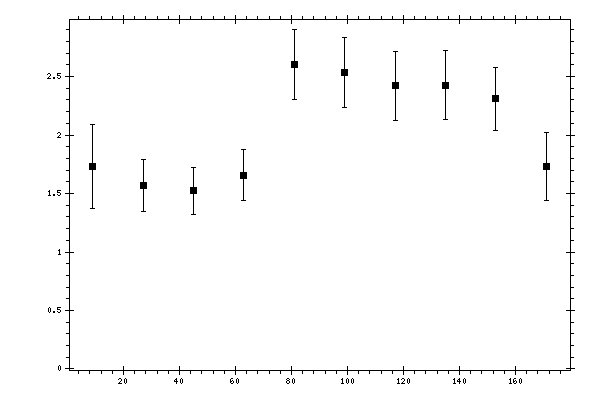

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.7329 | 0.1415 | 0.3319 | 0.3608 |
| 27 | 1.5679 | 0.0896 | 0.2047 | 0.2234 |
| 45 | 1.5227 | 0.0851 | 0.1782 | 0.1975 |
| 63 | 1.6587 | 0.1061 | 0.189 | 0.2168 |
| 81 | 2.6045 | 0.1428 | 0.2644 | 0.3005 |
| 99 | 2.5365 | 0.125 | 0.2748 | 0.3019 |
| 117 | 2.4211 | 0.1392 | 0.2588 | 0.2938 |
| 135 | 2.424 | 0.1472 | 0.2557 | 0.295 |
| 153 | 2.3091 | 0.1409 | 0.2299 | 0.2697 |
| 171 | 1.7308 | 0.1925 | 0.2205 | 0.2927 |
