Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.725 — 1.75 GeV | |
| Ebeam : | 5.754 GeV |
|

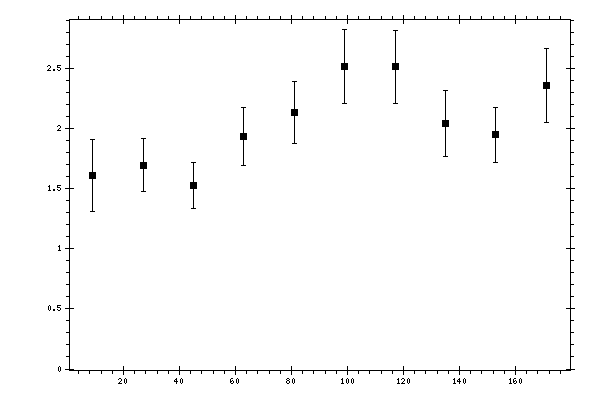

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.6113 | 0.1305 | 0.2662 | 0.2964 |
| 27 | 1.6956 | 0.1033 | 0.1942 | 0.22 |
| 45 | 1.527 | 0.0869 | 0.1697 | 0.1907 |
| 63 | 1.9364 | 0.1279 | 0.2075 | 0.2438 |
| 81 | 2.1339 | 0.128 | 0.2261 | 0.2598 |
| 99 | 2.5191 | 0.152 | 0.2716 | 0.3112 |
| 117 | 2.5158 | 0.147 | 0.2634 | 0.3017 |
| 135 | 2.0442 | 0.1729 | 0.2138 | 0.275 |
| 153 | 1.9492 | 0.1205 | 0.1923 | 0.2269 |
| 171 | 2.3611 | 0.187 | 0.2409 | 0.305 |
