Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.75 — 1.775 GeV | |
| Ebeam : | 5.754 GeV |
|

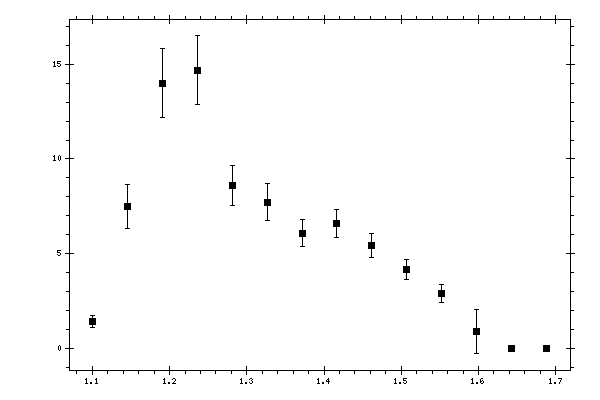

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 1.4154 | 0.1345 | 0.2957 | 0.3249 |
| 1.145619 | 7.4982 | 0.5326 | 1.0377 | 1.1664 |
| 1.190804 | 14.0031 | 0.8887 | 1.6068 | 1.8362 |
| 1.235989 | 14.6997 | 0.9481 | 1.5361 | 1.8051 |
| 1.281174 | 8.5978 | 0.55 | 0.8888 | 1.0452 |
| 1.326359 | 7.7134 | 0.6131 | 0.7606 | 0.9769 |
| 1.371544 | 6.0721 | 0.4198 | 0.5913 | 0.7252 |
| 1.416728 | 6.588 | 0.435 | 0.6163 | 0.7544 |
| 1.461913 | 5.4211 | 0.3839 | 0.5075 | 0.6364 |
| 1.507098 | 4.143 | 0.3303 | 0.3988 | 0.5178 |
| 1.552283 | 2.875 | 0.3784 | 0.3042 | 0.4855 |
| 1.597468 | 0.8858 | 0.142 | 0.1412 | 1.15 |
| 1.642653 | 0.0047 | 0.0023 | 0.0027 | 0.0036 |
| 1.687837 | 0 | 0.0013 | 0 | 0 |
