Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.75 — 1.775 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

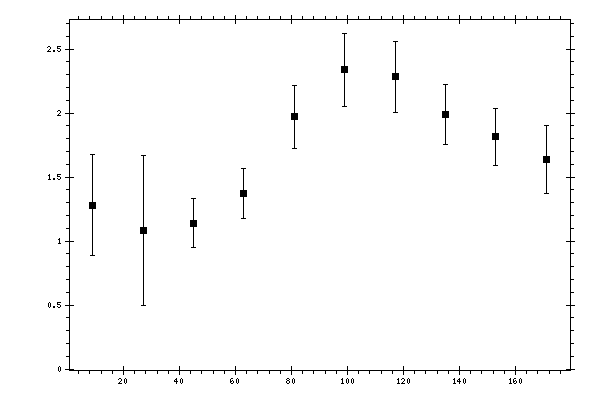

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.2811 | 0.1156 | 0.2347 | 0.3933 |
| 27 | 1.0809 | 0.0701 | 0.1387 | 0.5867 |
| 45 | 1.139 | 0.0765 | 0.1354 | 0.1922 |
| 63 | 1.3722 | 0.1132 | 0.159 | 0.1952 |
| 81 | 1.9695 | 0.12 | 0.2189 | 0.2496 |
| 99 | 2.3376 | 0.1377 | 0.2478 | 0.2835 |
| 117 | 2.2826 | 0.1458 | 0.2382 | 0.2792 |
| 135 | 1.9886 | 0.106 | 0.2059 | 0.2316 |
| 153 | 1.814 | 0.1297 | 0.1821 | 0.2236 |
| 171 | 1.6393 | 0.1898 | 0.1845 | 0.2647 |
