Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.8 — 1.825 GeV | |
| Ebeam : | 5.754 GeV |
|

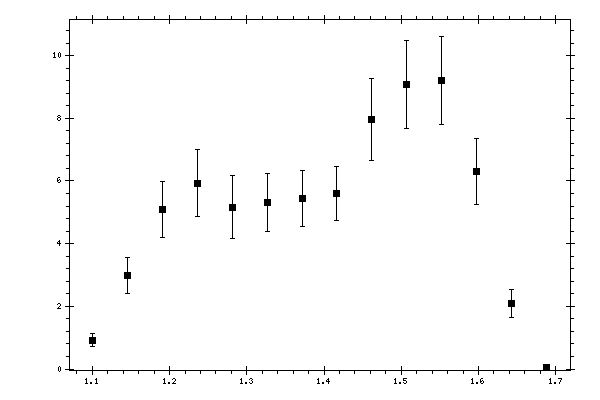

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.100435 | 0.9209 | 0.1219 | 0.158 | 0.1995 |
| 1.145619 | 2.9846 | 0.3324 | 0.4507 | 0.56 |
| 1.190804 | 5.0775 | 0.3767 | 0.8083 | 0.8918 |
| 1.235989 | 5.9272 | 0.4562 | 0.9631 | 1.0657 |
| 1.281174 | 5.1671 | 0.44 | 0.8933 | 0.9958 |
| 1.326359 | 5.3212 | 0.3298 | 0.8677 | 0.9283 |
| 1.371544 | 5.4459 | 0.4274 | 0.7788 | 0.8884 |
| 1.416728 | 5.6104 | 0.3929 | 0.769 | 0.8635 |
| 1.461913 | 7.9748 | 0.7456 | 1.0753 | 1.3085 |
| 1.507098 | 9.0863 | 0.703 | 1.2083 | 1.3979 |
| 1.552283 | 9.2048 | 0.7179 | 1.2054 | 1.403 |
| 1.597468 | 6.2967 | 0.5419 | 0.9134 | 1.062 |
| 1.642653 | 2.0947 | 0.2614 | 0.3745 | 0.4567 |
| 1.687837 | 0.0469 | 0.0107 | 0.0193 | 0.0221 |
