Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.825 — 1.85 GeV | |
| Ebeam : | 5.754 GeV |
|

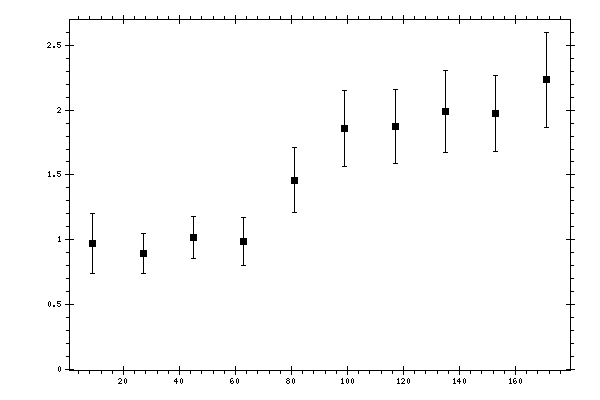

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.9696 | 0.0856 | 0.214 | 0.2305 |
| 27 | 0.8939 | 0.065 | 0.142 | 0.1562 |
| 45 | 1.016 | 0.065 | 0.1522 | 0.1655 |
| 63 | 0.985 | 0.0772 | 0.1674 | 0.1843 |
| 81 | 1.4606 | 0.0839 | 0.2352 | 0.2497 |
| 99 | 1.862 | 0.1296 | 0.2642 | 0.2943 |
| 117 | 1.8755 | 0.1186 | 0.2621 | 0.2877 |
| 135 | 1.9903 | 0.1567 | 0.2757 | 0.3171 |
| 153 | 1.977 | 0.12 | 0.2664 | 0.2922 |
| 171 | 2.2357 | 0.1913 | 0.315 | 0.3685 |
