Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|

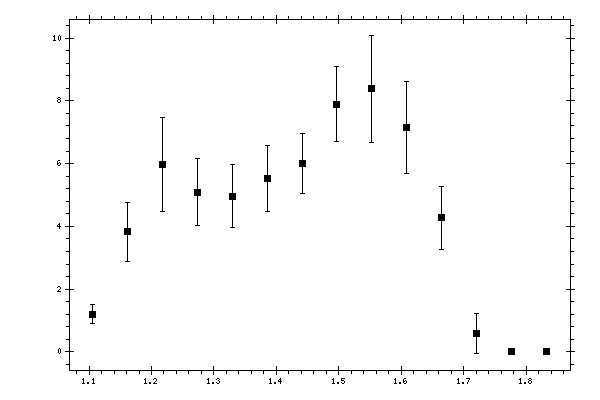

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.2082 | 0.1722 | 0.2147 | 0.3018 |
| 1.161691 | 3.8293 | 0.3019 | 0.663 | 0.9369 |
| 1.21759 | 5.9755 | 0.3543 | 1.0544 | 1.4911 |
| 1.273489 | 5.0956 | 0.3702 | 0.9966 | 1.0631 |
| 1.329388 | 4.9645 | 0.2883 | 0.9683 | 1.0103 |
| 1.385287 | 5.5163 | 0.4383 | 0.9494 | 1.0457 |
| 1.441186 | 6.0041 | 0.3495 | 0.8779 | 0.9449 |
| 1.497086 | 7.8878 | 0.5036 | 1.0795 | 1.1912 |
| 1.552985 | 8.3789 | 0.6777 | 1.1932 | 1.6906 |
| 1.608884 | 7.1538 | 0.5754 | 1.0412 | 1.4755 |
| 1.664783 | 4.2686 | 0.4899 | 0.7068 | 1.0018 |
| 1.720682 | 0.5991 | 0.1209 | 0.1402 | 0.6365 |
| 1.776581 | 0 | 0 | 0 | 0 |
| 1.83248 | 0 | 0 | 0 | 0 |
