Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.85 — 1.875 GeV | |
| Ebeam : | 5.754 GeV |
|

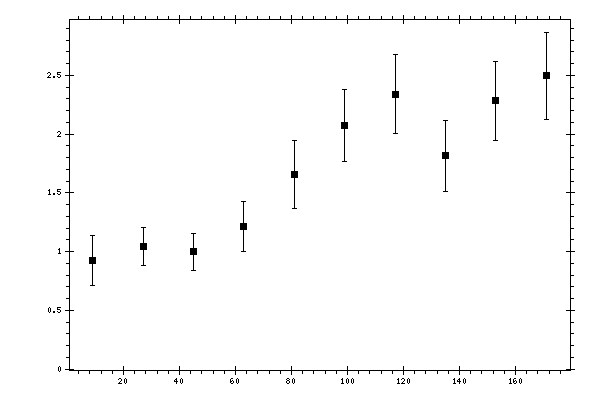

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.9213 | 0.0844 | 0.1961 | 0.2135 |
| 27 | 1.0412 | 0.0623 | 0.1501 | 0.1626 |
| 45 | 0.9968 | 0.0568 | 0.1453 | 0.156 |
| 63 | 1.2119 | 0.1066 | 0.1872 | 0.2154 |
| 81 | 1.6554 | 0.1439 | 0.2471 | 0.2859 |
| 99 | 2.0743 | 0.1407 | 0.2698 | 0.3043 |
| 117 | 2.3407 | 0.1523 | 0.3015 | 0.3377 |
| 135 | 1.8136 | 0.1774 | 0.2435 | 0.3013 |
| 153 | 2.2816 | 0.1791 | 0.2839 | 0.3357 |
| 171 | 2.4943 | 0.1797 | 0.3221 | 0.3688 |
