Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

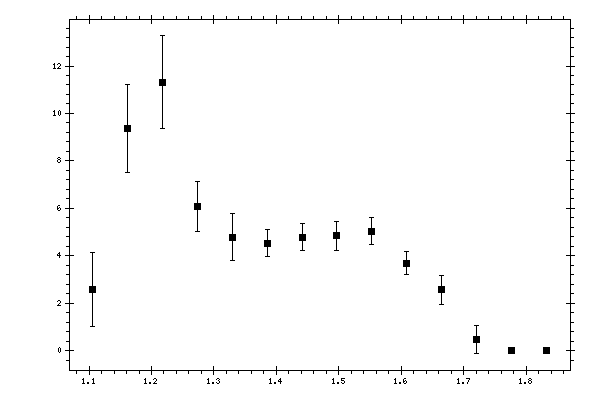

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 2.5632 | 0.2207 | 0.4798 | 1.5565 |
| 1.161691 | 9.3733 | 0.7051 | 1.3162 | 1.8677 |
| 1.21759 | 11.3157 | 0.6891 | 1.3752 | 1.9547 |
| 1.273489 | 6.0878 | 0.4148 | 0.7473 | 1.0621 |
| 1.329388 | 4.7918 | 0.8061 | 0.5623 | 0.9828 |
| 1.385287 | 4.5333 | 0.3123 | 0.4926 | 0.5832 |
| 1.441186 | 4.7873 | 0.3299 | 0.4795 | 0.582 |
| 1.497086 | 4.8367 | 0.3736 | 0.4624 | 0.5945 |
| 1.552985 | 5.0343 | 0.3198 | 0.4665 | 0.5656 |
| 1.608884 | 3.6912 | 0.2514 | 0.3481 | 0.4946 |
| 1.664783 | 2.5648 | 0.2256 | 0.2533 | 0.6197 |
| 1.720682 | 0.4815 | 0.0798 | 0.077 | 0.5849 |
| 1.776581 | 0.001 | 0.0014 | 0.0006 | 0.0015 |
| 1.83248 | 0 | 0 | 0 | 0 |
