Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.875 — 1.9 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

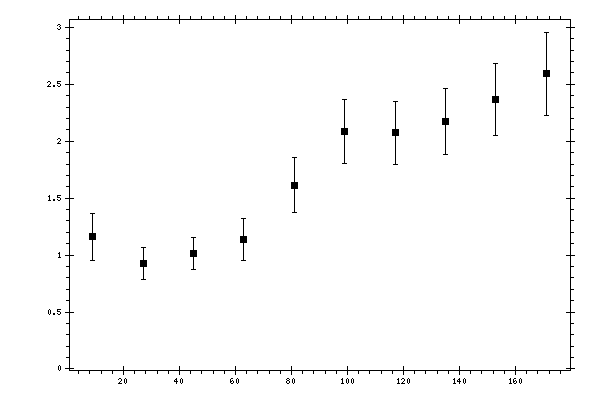

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.1604 | 0.094 | 0.1833 | 0.206 |
| 27 | 0.9254 | 0.0775 | 0.1156 | 0.1392 |
| 45 | 1.0143 | 0.065 | 0.1243 | 0.1403 |
| 63 | 1.1377 | 0.085 | 0.1634 | 0.1842 |
| 81 | 1.6127 | 0.1141 | 0.212 | 0.2408 |
| 99 | 2.0837 | 0.1738 | 0.2229 | 0.2827 |
| 117 | 2.0755 | 0.1518 | 0.2325 | 0.2777 |
| 135 | 2.1751 | 0.1536 | 0.2446 | 0.2889 |
| 153 | 2.3666 | 0.1992 | 0.2451 | 0.3159 |
| 171 | 2.5918 | 0.2328 | 0.2805 | 0.3645 |
