Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.95 — 1.975 GeV | |
| Ebeam : | 5.754 GeV |
|

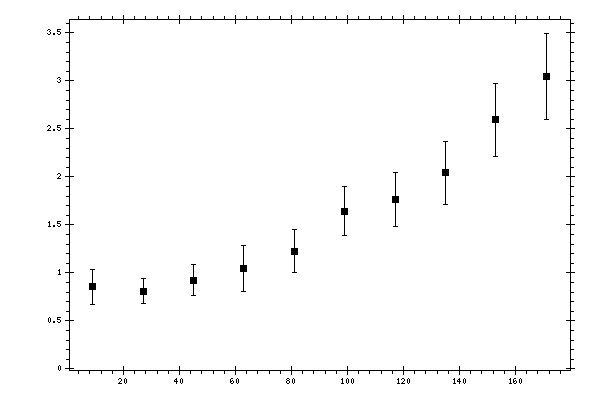

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.855 | 0.076 | 0.1662 | 0.1827 |
| 27 | 0.8081 | 0.0506 | 0.1194 | 0.1297 |
| 45 | 0.9258 | 0.064 | 0.1453 | 0.1588 |
| 63 | 1.0454 | 0.1112 | 0.2123 | 0.2397 |
| 81 | 1.2289 | 0.0873 | 0.204 | 0.2219 |
| 99 | 1.6441 | 0.1123 | 0.2261 | 0.2524 |
| 117 | 1.7634 | 0.1221 | 0.2556 | 0.2832 |
| 135 | 2.0418 | 0.1383 | 0.2925 | 0.3236 |
| 153 | 2.595 | 0.1652 | 0.345 | 0.3825 |
| 171 | 3.048 | 0.2056 | 0.3959 | 0.4461 |
