Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

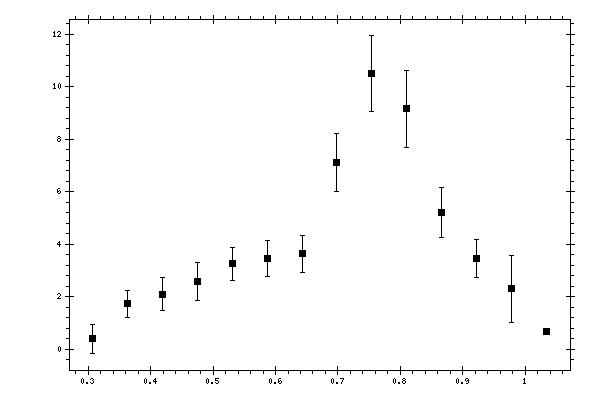

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 0.30709 | 0.4089 | 0.0468 | 0.1309 | 0.5525 |
| 0.362989 | 1.7317 | 0.1409 | 0.3594 | 0.5093 |
| 0.418888 | 2.1091 | 0.1564 | 0.4573 | 0.646 |
| 0.474787 | 2.5914 | 0.1596 | 0.5005 | 0.7143 |
| 0.530686 | 3.2534 | 0.2321 | 0.5912 | 0.6351 |
| 0.586586 | 3.4651 | 0.2362 | 0.6326 | 0.6753 |
| 0.642485 | 3.6375 | 0.2692 | 0.6567 | 0.7098 |
| 0.698384 | 7.1231 | 0.5182 | 0.9678 | 1.0978 |
| 0.754283 | 10.5126 | 0.7603 | 1.2166 | 1.4347 |
| 0.810182 | 9.1665 | 0.7687 | 1.0433 | 1.4793 |
| 0.866081 | 5.2168 | 0.3487 | 0.6786 | 0.9668 |
| 0.92198 | 3.452 | 0.262 | 0.5127 | 0.7246 |
| 0.977879 | 2.3039 | 0.1947 | 0.2374 | 1.2672 |
| 1.033778 | 0.6722 | 0.0834 | 0.0684 | 0.1078 |
