Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|

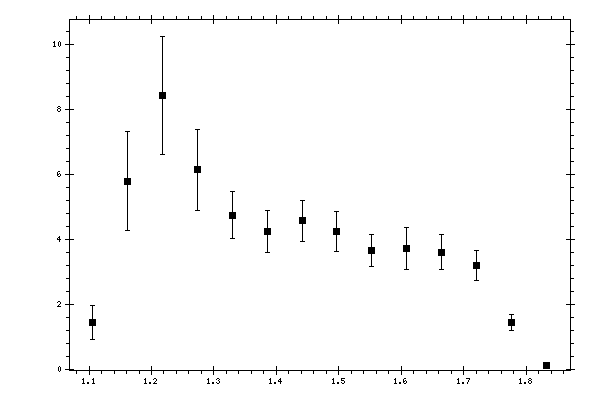

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.105792 | 1.4396 | 0.139 | 0.367 | 0.5204 |
| 1.161691 | 5.7904 | 0.3091 | 1.0739 | 1.5224 |
| 1.21759 | 8.4449 | 0.5031 | 1.281 | 1.8131 |
| 1.273489 | 6.1397 | 0.4383 | 0.8808 | 1.251 |
| 1.329388 | 4.7428 | 0.3093 | 0.6516 | 0.7213 |
| 1.385287 | 4.234 | 0.3547 | 0.5452 | 0.6504 |
| 1.441186 | 4.5693 | 0.3272 | 0.5546 | 0.644 |
| 1.497086 | 4.2405 | 0.3525 | 0.5038 | 0.6149 |
| 1.552985 | 3.6427 | 0.2352 | 0.4316 | 0.4916 |
| 1.608884 | 3.7071 | 0.5006 | 0.4039 | 0.6433 |
| 1.664783 | 3.6012 | 0.2297 | 0.3773 | 0.5424 |
| 1.720682 | 3.1866 | 0.2401 | 0.3243 | 0.4557 |
| 1.776581 | 1.433 | 0.1364 | 0.1784 | 0.258 |
| 1.83248 | 0.1211 | 0.0236 | 0.0377 | 0.0444 |
