Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 — 2 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

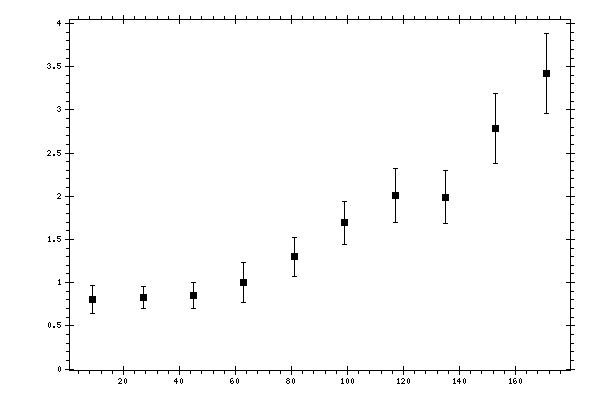

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.7989 | 0.0708 | 0.1459 | 0.1621 |
| 27 | 0.8257 | 0.0619 | 0.111 | 0.1271 |
| 45 | 0.8507 | 0.057 | 0.1335 | 0.1452 |
| 63 | 1.0024 | 0.061 | 0.2213 | 0.2295 |
| 81 | 1.2972 | 0.1046 | 0.1993 | 0.225 |
| 99 | 1.6921 | 0.1069 | 0.2215 | 0.246 |
| 117 | 2.0077 | 0.149 | 0.2701 | 0.3085 |
| 135 | 1.9894 | 0.1251 | 0.2762 | 0.3032 |
| 153 | 2.7851 | 0.1908 | 0.3523 | 0.4006 |
| 171 | 3.4189 | 0.2248 | 0.4003 | 0.4591 |
