Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 2 — 2.025 GeV | |
| Ebeam : | 5.754 GeV |
|

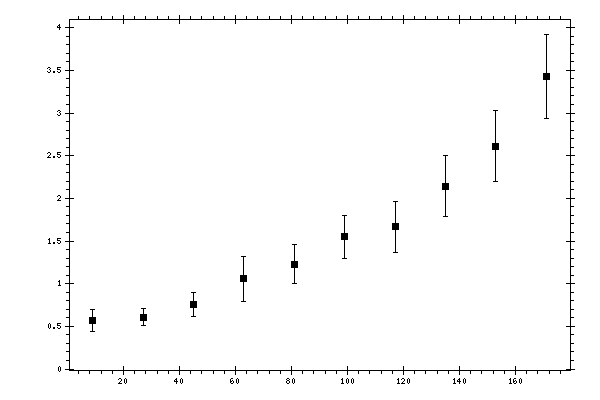

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.5706 | 0.0549 | 0.1173 | 0.1295 |
| 27 | 0.6088 | 0.0435 | 0.0952 | 0.1046 |
| 45 | 0.7543 | 0.0565 | 0.1316 | 0.1432 |
| 63 | 1.0563 | 0.1089 | 0.2405 | 0.264 |
| 81 | 1.2305 | 0.1144 | 0.2021 | 0.2323 |
| 99 | 1.5489 | 0.094 | 0.2357 | 0.2537 |
| 117 | 1.6689 | 0.1326 | 0.2668 | 0.2979 |
| 135 | 2.1416 | 0.1646 | 0.3157 | 0.356 |
| 153 | 2.6086 | 0.1759 | 0.3778 | 0.4168 |
| 171 | 3.4263 | 0.2308 | 0.4321 | 0.4899 |
