Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 2.025 — 2.05 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

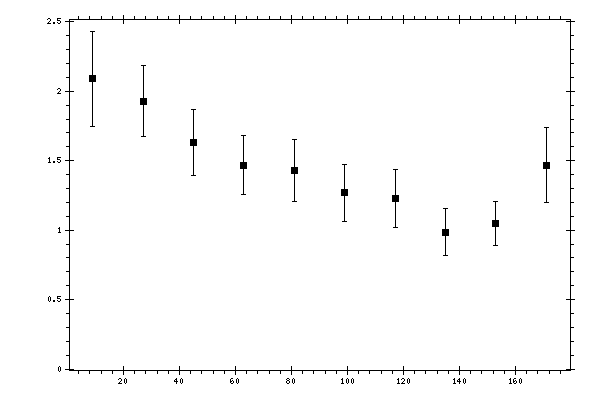

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.0902 | 0.197 | 0.2803 | 0.3426 |
| 27 | 1.9289 | 0.1209 | 0.2227 | 0.2534 |
| 45 | 1.6327 | 0.1239 | 0.2019 | 0.2369 |
| 63 | 1.467 | 0.0766 | 0.1995 | 0.2137 |
| 81 | 1.4277 | 0.0989 | 0.2005 | 0.2236 |
| 99 | 1.2678 | 0.0714 | 0.1893 | 0.2023 |
| 117 | 1.2278 | 0.1037 | 0.179 | 0.2068 |
| 135 | 0.9867 | 0.0783 | 0.1508 | 0.1699 |
| 153 | 1.0463 | 0.0739 | 0.1382 | 0.1567 |
| 171 | 1.4679 | 0.1764 | 0.2042 | 0.2699 |
