Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 2.05 — 2.075 GeV | |
| Ebeam : | 5.754 GeV |
|

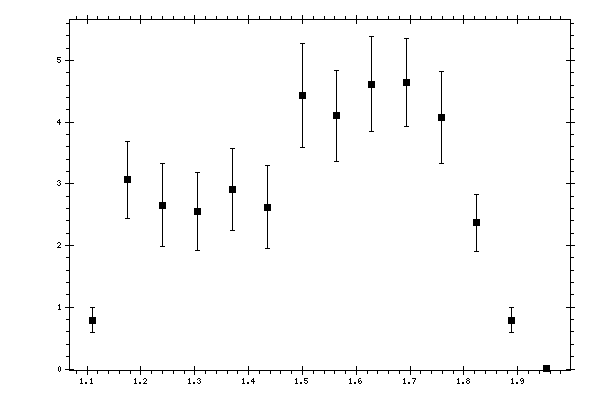

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 0.7928 | 0.0925 | 0.1837 | 0.2056 |
| 1.175084 | 3.068 | 0.237 | 0.578 | 0.6247 |
| 1.239911 | 2.6508 | 0.2041 | 0.6405 | 0.6722 |
| 1.304739 | 2.5511 | 0.154 | 0.6148 | 0.6338 |
| 1.369567 | 2.9102 | 0.2316 | 0.6251 | 0.6666 |
| 1.434394 | 2.6196 | 0.3358 | 0.5852 | 0.6747 |
| 1.499222 | 4.4294 | 0.4096 | 0.7337 | 0.8403 |
| 1.56405 | 4.1043 | 0.3356 | 0.6534 | 0.7345 |
| 1.628878 | 4.6154 | 0.3904 | 0.6645 | 0.7707 |
| 1.693705 | 4.6438 | 0.2558 | 0.6717 | 0.7188 |
| 1.758533 | 4.0773 | 0.3948 | 0.6388 | 0.751 |
| 1.823361 | 2.3664 | 0.1901 | 0.4183 | 0.4595 |
| 1.888188 | 0.7915 | 0.0944 | 0.176 | 0.1997 |
| 1.953016 | 0.0093 | 0.0017 | 0.0048 | 0.0051 |
