Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|

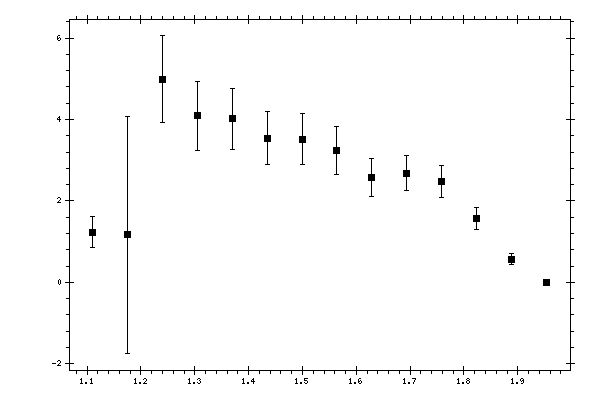

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.110256 | 1.2352 | 0.1177 | 0.3606 | 0.3793 |
| 1.175084 | 1.1689 | 2.8459 | 0.5869 | 2.9058 |
| 1.239911 | 4.9879 | 0.4414 | 0.9716 | 1.0672 |
| 1.304739 | 4.0956 | 0.4047 | 0.7416 | 0.8448 |
| 1.369567 | 4.0148 | 0.3233 | 0.6857 | 0.7581 |
| 1.434394 | 3.5432 | 0.2637 | 0.5917 | 0.6477 |
| 1.499222 | 3.5201 | 0.293 | 0.5605 | 0.6325 |
| 1.56405 | 3.2429 | 0.2825 | 0.5142 | 0.5867 |
| 1.628878 | 2.5804 | 0.2433 | 0.4079 | 0.4749 |
| 1.693705 | 2.6818 | 0.1774 | 0.39 | 0.4285 |
| 1.758533 | 2.4802 | 0.1809 | 0.3499 | 0.3939 |
| 1.823361 | 1.572 | 0.1387 | 0.224 | 0.2635 |
| 1.888188 | 0.5736 | 0.0781 | 0.0993 | 0.1263 |
| 1.953016 | 0.0001 | 0.0018 | 0.0001 | 0.0018 |
