Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

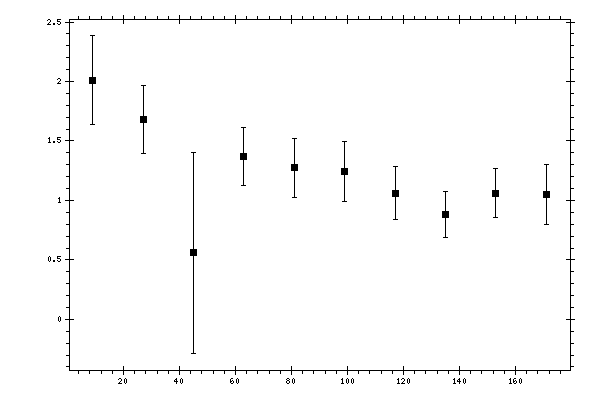

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 2.0117 | 0.1634 | 0.3342 | 0.372 |
| 27 | 1.6805 | 0.1209 | 0.2577 | 0.2846 |
| 45 | 0.5586 | 0.8334 | 0.1234 | 0.8425 |
| 63 | 1.3688 | 0.0816 | 0.2315 | 0.2455 |
| 81 | 1.2732 | 0.0809 | 0.231 | 0.2448 |
| 99 | 1.2458 | 0.1014 | 0.2318 | 0.253 |
| 117 | 1.0605 | 0.0922 | 0.2043 | 0.2242 |
| 135 | 0.8834 | 0.0758 | 0.1772 | 0.1927 |
| 153 | 1.0622 | 0.0982 | 0.1834 | 0.208 |
| 171 | 1.0514 | 0.1341 | 0.2109 | 0.2499 |
