Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 2.075 — 2.1 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

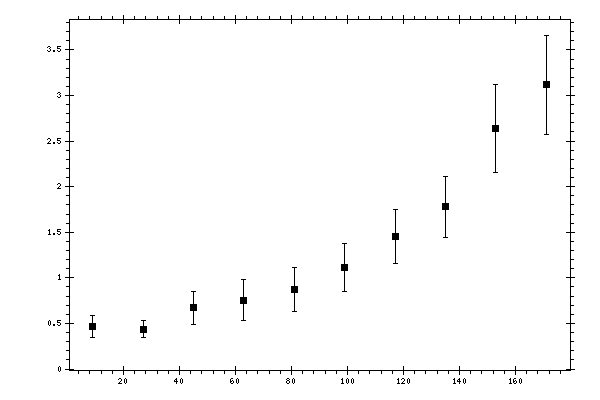

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.4649 | 0.0546 | 0.1054 | 0.1187 |
| 27 | 0.4344 | 0.0372 | 0.085 | 0.0927 |
| 45 | 0.6703 | 0.0639 | 0.1673 | 0.1791 |
| 63 | 0.7568 | 0.0475 | 0.2238 | 0.2288 |
| 81 | 0.8744 | 0.0393 | 0.2382 | 0.2414 |
| 99 | 1.1106 | 0.0444 | 0.2597 | 0.2635 |
| 117 | 1.4546 | 0.1077 | 0.2746 | 0.2949 |
| 135 | 1.7805 | 0.1178 | 0.3137 | 0.3351 |
| 153 | 2.6363 | 0.1399 | 0.4643 | 0.4849 |
| 171 | 3.1194 | 0.2593 | 0.4768 | 0.5428 |
