Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

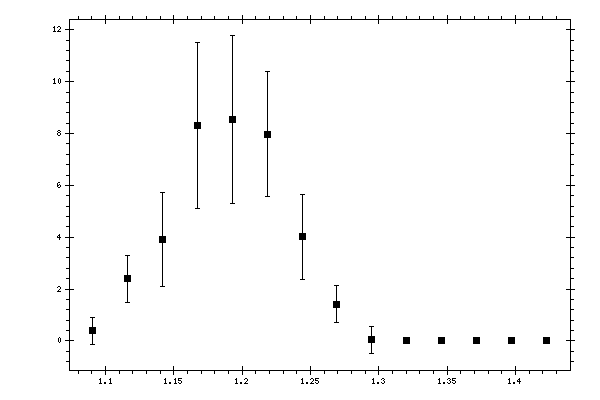

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
Syst. error,
mcb/GeV |
Total error,
mcb/GeV |
|---|---|---|---|---|
| 1.090613 | 0.3996 | 0.0678 | 0.2307 | 0.5216 |
| 1.116155 | 2.3933 | 0.2898 | 0.8436 | 0.892 |
| 1.141697 | 3.9236 | 0.3774 | 1.2732 | 1.8036 |
| 1.167239 | 8.3096 | 0.6584 | 2.2633 | 3.2044 |
| 1.192781 | 8.543 | 0.5983 | 2.2794 | 3.2228 |
| 1.218323 | 7.9725 | 1.1798 | 2.102 | 2.4105 |
| 1.243865 | 4.0116 | 0.4271 | 1.1542 | 1.6344 |
| 1.269407 | 1.4181 | 0.2113 | 0.4983 | 0.7068 |
| 1.294949 | 0.0479 | 0.0154 | 0.0352 | 0.5166 |
| 1.320491 | 0 | 0.0086 | 0 | 0 |
| 1.346033 | 0 | 0.0032 | 0 | 0 |
| 1.371575 | 0 | 0.0001 | 0 | 0 |
| 1.397117 | 0 | 0 | 0 | 0 |
| 1.422659 | 0 | 0 | 0 | 0 |
