Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.425 — 1.45 GeV | |
| Ebeam : | 5.754 GeV |
|

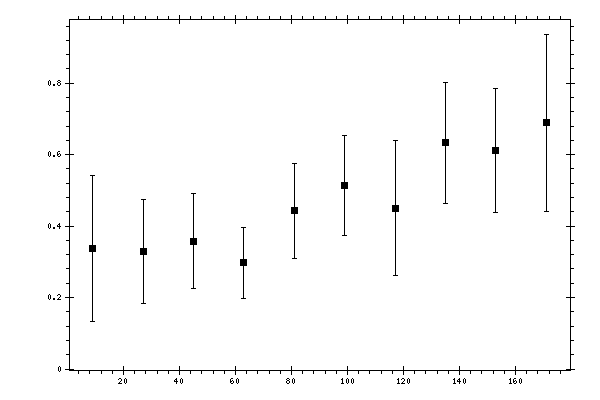

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.3365 | 0.0596 | 0.1961 | 0.2049 |
| 27 | 0.3294 | 0.0518 | 0.1354 | 0.145 |
| 45 | 0.3574 | 0.0471 | 0.1246 | 0.1333 |
| 63 | 0.2968 | 0.0326 | 0.0936 | 0.0991 |
| 81 | 0.4433 | 0.0594 | 0.1188 | 0.1328 |
| 99 | 0.5139 | 0.0434 | 0.1332 | 0.1401 |
| 117 | 0.45 | 0.1486 | 0.1164 | 0.1887 |
| 135 | 0.633 | 0.053 | 0.1605 | 0.169 |
| 153 | 0.6126 | 0.0635 | 0.1618 | 0.1738 |
| 171 | 0.6894 | 0.1242 | 0.2242 | 0.2472 |
