Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

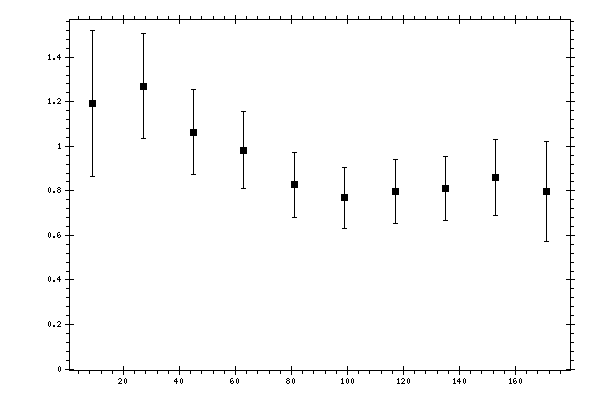

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 1.1932 | 0.1534 | 0.2886 | 0.3268 |
| 27 | 1.2708 | 0.1089 | 0.21 | 0.2366 |
| 45 | 1.0641 | 0.0844 | 0.1717 | 0.1913 |
| 63 | 0.9832 | 0.0795 | 0.1527 | 0.1722 |
| 81 | 0.8279 | 0.0698 | 0.129 | 0.1466 |
| 99 | 0.7687 | 0.0591 | 0.1234 | 0.1368 |
| 117 | 0.7961 | 0.0657 | 0.1278 | 0.1437 |
| 135 | 0.8104 | 0.0618 | 0.1311 | 0.1449 |
| 153 | 0.8607 | 0.0878 | 0.1452 | 0.1697 |
| 171 | 0.7979 | 0.1065 | 0.1973 | 0.2242 |
