Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.5 — 1.525 GeV | |
| Ebeam : | 5.754 GeV |
|

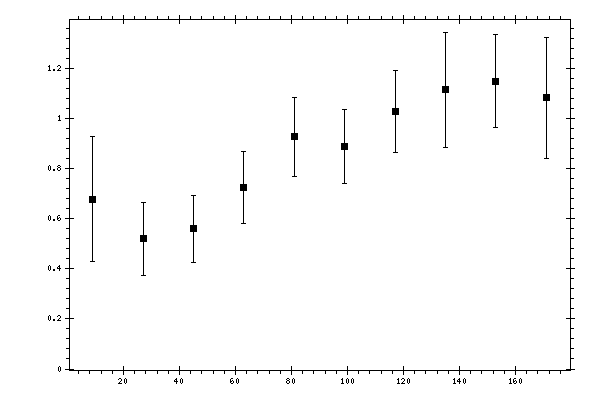

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 9 | 0.6786 | 0.1026 | 0.2263 | 0.2484 |
| 27 | 0.5195 | 0.0557 | 0.136 | 0.147 |
| 45 | 0.5596 | 0.0465 | 0.1246 | 0.133 |
| 63 | 0.7244 | 0.0693 | 0.1255 | 0.1434 |
| 81 | 0.9279 | 0.074 | 0.1386 | 0.1572 |
| 99 | 0.8873 | 0.0646 | 0.1328 | 0.1477 |
| 117 | 1.0287 | 0.0652 | 0.1509 | 0.1644 |
| 135 | 1.1151 | 0.0838 | 0.1615 | 0.23 |
| 153 | 1.1493 | 0.0955 | 0.1706 | 0.1866 |
| 171 | 1.0835 | 0.1392 | 0.2108 | 0.2422 |
