Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2025, 2001
Spokespersons: R.W. Gothe, A. Trivedi
Experiment comment: Experiment year: 2001—2002
Measurement comment: The angle ψ is the angle between the plane defined by the three-momenta of the hadron (in parentheses) and the target proton, and the plane defined by the three-momenta of the other two final-state hadrons
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.525 — 1.55 GeV | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

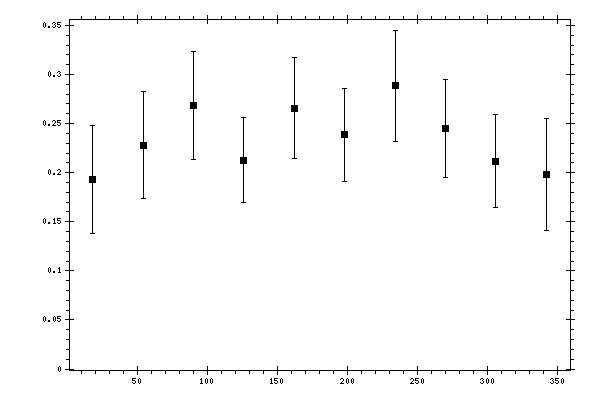

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Stat. error,
mcb/rad |
Syst. error,
mcb/rad |
Total error,
mcb/rad |
|---|---|---|---|---|
| 18 | 0.1932 | 0.0188 | 0.0518 | 0.0551 |
| 54 | 0.228 | 0.0307 | 0.0453 | 0.0547 |
| 90 | 0.2683 | 0.025 | 0.0492 | 0.0551 |
| 126 | 0.2126 | 0.0176 | 0.0396 | 0.0433 |
| 162 | 0.2659 | 0.0214 | 0.0471 | 0.0518 |
| 198 | 0.2385 | 0.021 | 0.0426 | 0.0475 |
| 234 | 0.2887 | 0.0236 | 0.0513 | 0.0565 |
| 270 | 0.245 | 0.021 | 0.0451 | 0.0497 |
| 306 | 0.2117 | 0.0207 | 0.0425 | 0.0473 |
| 342 | 0.1982 | 0.0233 | 0.0525 | 0.0574 |
